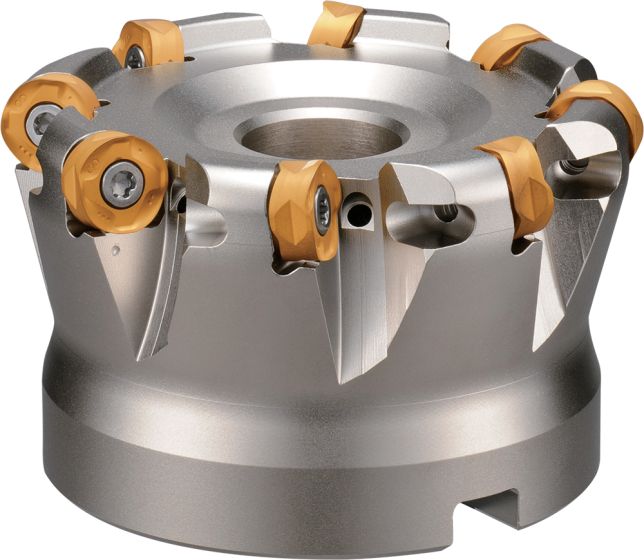

MRW100R-12-9T
SKU
THN06243
Product Overview
MRW
Contouring Milling
3D Milling
Radius Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 6.00 |
| [CBDP] Connection Bore Depth | 34.00 |
| [DC] Cutting Diameter | 100.00 |
| [DCB] Connection Bore Diameter | 31.75 |
| [DCCB1] Connection Counterbore Diameter 1 | 46.00 |
| [DCCB2] Connection Counterbore Diameter 2 | - |
| [DCFMS] Contact Surface Diameter Machine Side | 78.00 |
| [KDP] Keyway Depth | 8.00 |
| [KWW] Keyway With | 12.70 |
Radius Face Mill
| Weight | 1.501000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | Yes |
| Connection Bore Diameter | 31.75 |
| Connection Counterbore Diameter 1 | 46.00 |
| Contact Surface Diameter Machine Side | 78.00 |
| Cutting Item Count | 9 |
| Application Category | Facing, Profiling, Shouldering, Contouring, Plunging |
| Rake Angle Axial (Degree) | +12 |
| Grooving | Parting off |
| Tool Style | MRW |
| Rake Angle Radial (Degree) | -15_5 |

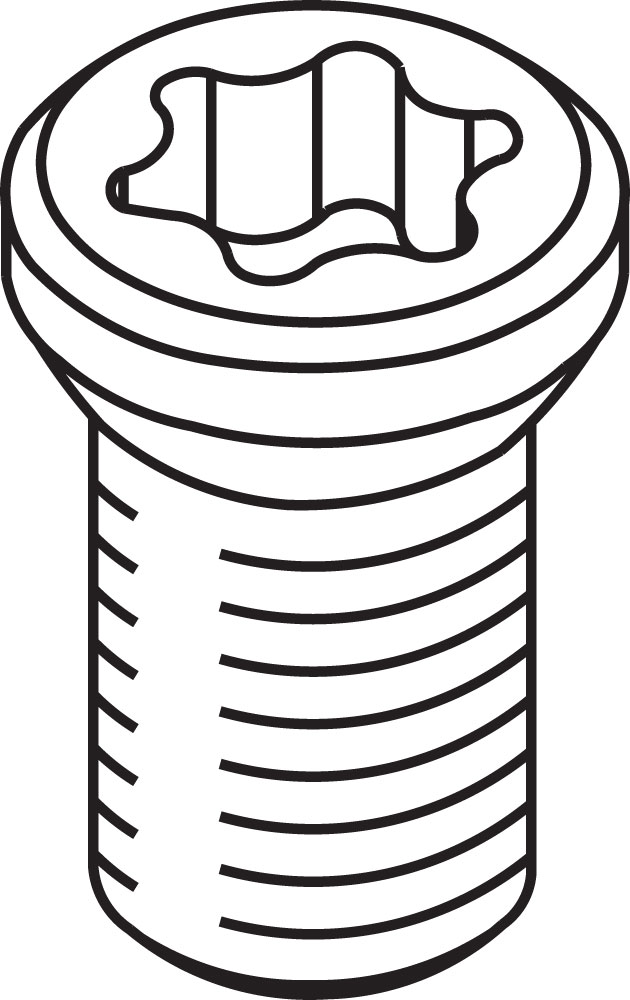

| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Families | Profile Mills |

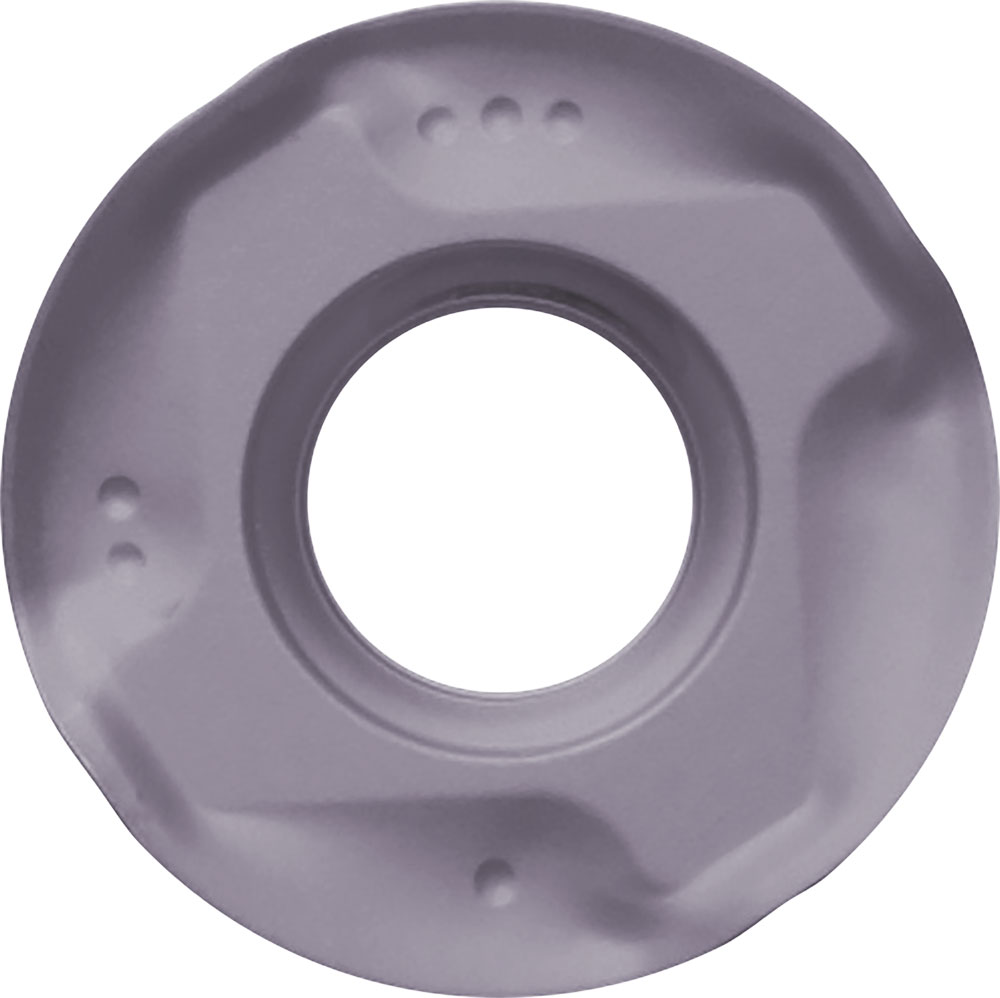

| Insert Size | RO-1204 |
