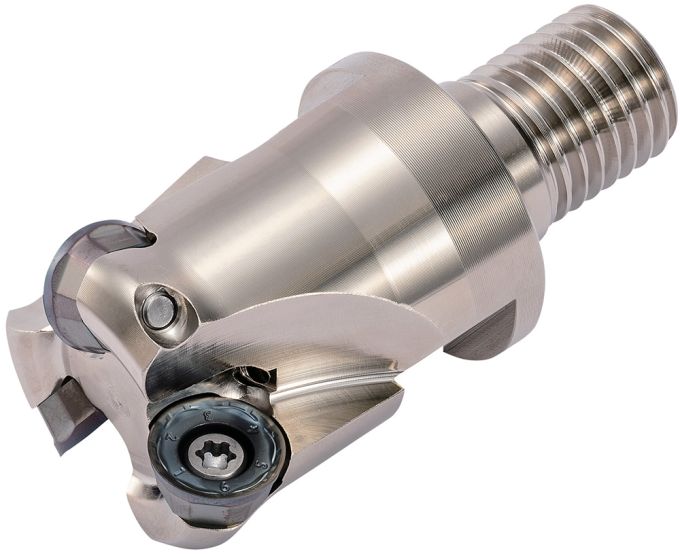

MRX40-M16-16-2T
SKU
THN07058
Product Overview
MRX
3D Milling
Slot Radius Milling
Ramp Milling
Plunging & Recessing
Slot Miling
Radius Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DCON] Connection Diameter | 17.00 |
| [OAL] Overall Length | 62_00 |
| [APMX] Head Length | 8.00 |
| [DC] Cutting Diameter | 40.00 |
| [DCFMS] Contact Surface Diameter Machine Side | 30.00 |
| [H] Shank Height | 24.00 |
Radius End Mill
| Weight | 0.278000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Screw Type |
| Coolant supply property | Yes |
| Contact Surface Diameter Machine Side | 30.00 |
| Cutting Item Count | 2 |
| Application Category | Facing, Profiling, Shouldering, Slotting, Pocketing, Ramping |
| Rake Angle Axial (Degree) | +10 |
| Grooving | Parting off |
| Tool Style | MRX |
| Rake Angle Radial (Degree) | -5_5 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Families | Profile Mills |
| Shank Height | 24.00 |
| Insert Size | RD-1605 |
Currently Holders Selection Are Not Available Please Visit Back Later.
