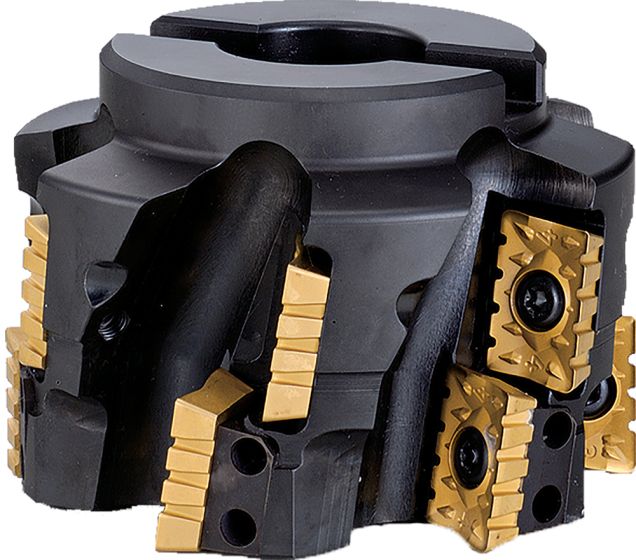

MSR200R-2M
SKU
THN01076
Product Overview
MSR
Deep Shoulder Milling
Slot Miling
Shoulder Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 45.00 |
| [CBDP] Connection Bore Depth | 38.00 |
| [DC] Cutting Diameter | 200.00 |
| [DCB] Connection Bore Diameter | 60.00 |
| [DCCB1] Connection Counterbore Diameter 1 | - |
| [DCCB2] Connection Counterbore Diameter 2 | - |
| [DCCB3] Connection Counterbore Diameter 3 | 18.00 |
| [DCCB4] Connection Counterbore Diameter 4 | 26.00 |
| [DCCB5] Connection Counterbore Diameter 5 | - |
| [DCX] Cutting Diameter Maximum | 200.00 |
| [KDP] Keyway Depth | 15.00 |
| [KWW] Keyway With | 25.40 |
| [NOF] Flute count | 10 |
90 Degree Lead Angle Face Mill
| Weight | 8.601000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | No |
| Connection Bore Diameter | 60.00 |
| Connection Counterbore Diameter 1 | - |
| Connection Counterbore Diameter 3 | 18.00 |
| Connection Counterbore Diameter 4 | 26.00 |
| Connection Counterbore Diameter 5 | - |
| Cutting Diameter Maximum | 200.00 |
| Flute count | 10 |
| Cutting Item Count | 20 |
| Number of Stages | 2 |
| Application Category | Facing, Shouldering, Slotting, Heavy Milling |
| Rake Angle Axial (Degree) | +9 |
| Grooving | Parting off |
| Tool Style | MSR |
| Rake Angle Radial (Degree) | -5 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 90 |
| Brand | Kyocera |
| Families | Shell_Mills |
| Insert Size | AP-2506 |
Currently Holders Selection Are Not Available Please Visit Back Later.
