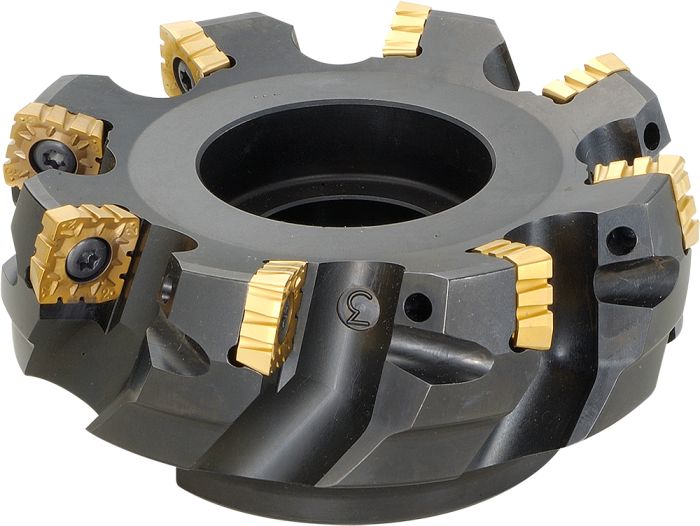

MSRS15080R-6T-M
SKU
THN01303
Product Overview
MSRS
Slot Miling
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [APMX] Head Length | 12.00 |
| [CBDP] Connection Bore Depth | - |
| [DBC1] Pitch Diameter | - |
| [DC] Cutting Diameter | 80.00 - 87.00 |
| [DCB] Connection Bore Diameter | 27.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 20.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 13.00 |
| [DCCB3] Connection Counterbore Diameter 3 | - |
| [DCCB4] Connection Counterbore Diameter 4 | - |
| [DCCB5] Connection Counterbore Diameter 5 | - |
| [DCFMS] Contact Surface Diameter Machine Side | 70.00 |
| [DCX] Cutting Diameter Maximum | 87.00 |
| [KDP] Keyway Depth | 7.00 |
| [KWW] Keyway With | 12.00 |
| [NOF] Flute count | 6 |
75 Degree Lead Angle Face Mill
| Weight | 1.301000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Connection Code Machine | Arbor Type |
| Coolant supply property | No |
| Pitch Diameter | - |
| (DBC2) Diameter | - |
| Connection Bore Diameter | 27.00 |
| Connection Counterbore Diameter 1 | 20.00 |
| Connection Counterbore Diameter 3 | - |
| Connection Counterbore Diameter 4 | - |
| Connection Counterbore Diameter 5 | - |
| Contact Surface Diameter Machine Side | 70.00 |
| Cutting Diameter Maximum | 87.00 |
| Flute count | 6 |
| Cutting Item Count | 6 |
| Number of Stages | 1 |
| Application Category | Facing, Heavy Milling |
| Rake Angle Axial (Degree) | +9 |
| Grooving | Parting off |
| Tool Style | MSRS |
| Rake Angle Radial (Degree) | -9 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 75 |
| Brand | Kyocera |
| Families | Face Mills |
| Insert Size | SP-1806 |
Currently Holders Selection Are Not Available Please Visit Back Later.
