MSTC160SN1820-12-5T
SKU
THC10222
Product Overview
MSTC
Side Slotting
Slot Miling
Shoulder Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 43.40 |
| [CBDP] Connection Bore Depth | 30.00 |
| [DC] Cutting Diameter | 160.00 |
| [DCB] Connection Bore Diameter | 40.00 |
| [DCCB1] Connection Counterbore Diameter 1 | 56.00 |
| [DCCB2] Connection Counterbore Diameter 2 | - |
| [KDP] Keyway Depth | 09.00 |
| [KWW] Keyway With | 16.40 |
| [NOF] Flute count | 5 |
Slot Milling Cutter
| Weight | 2.301000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 43.40 |
| Connection Code Machine | Disk Type |
| Coolant supply property | No |
| Connection Bore Diameter | 40.00 |
| Connection Counterbore Diameter 1 | 56.00 |
| Flute count | 5 |
| Cutting Item Count | 10 |
| Application Category | Shouldering, Slotting |
| Grooving | Parting off |
| Tool Style | MSTC |

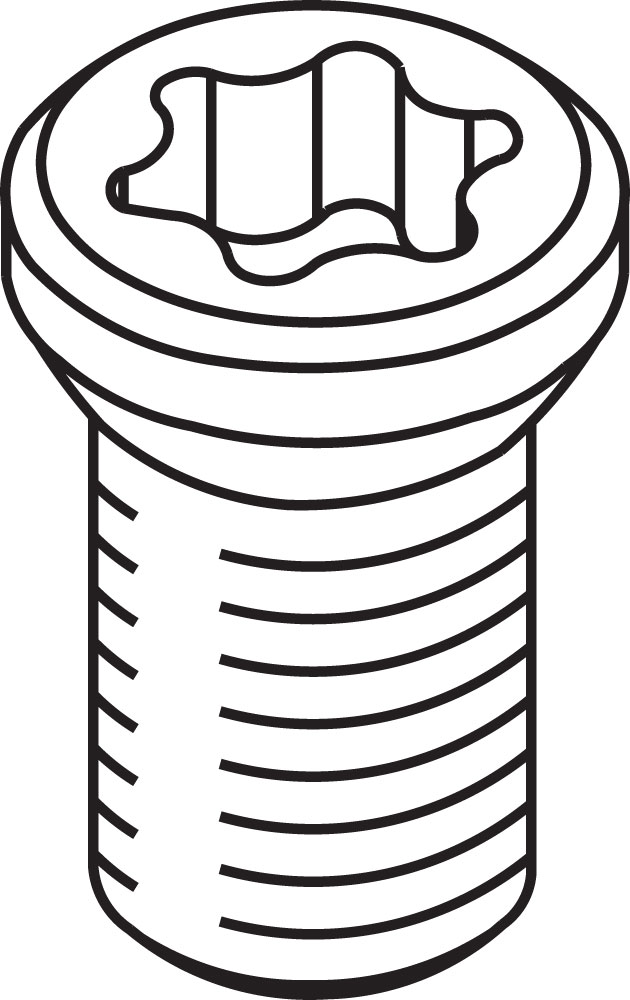

| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Families | Slott Mill |
| Insert Size | SDCT-SDET |
