| Specifications | |
|---|---|
| [B] Shank Width | 20.00 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 26.00 |
| [WF] Cutting Edge Distance | 20.00 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 20.00 |

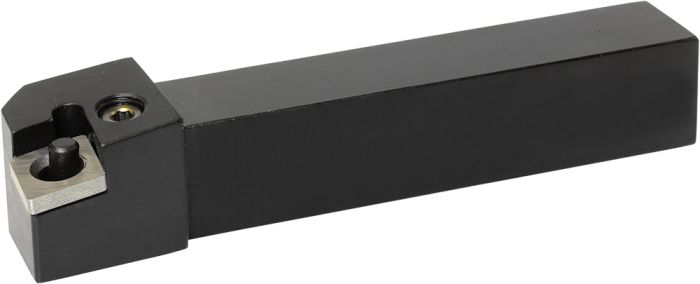

Turning Holder
| Weight | 0.358000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Application Category | External Turning, Small parts machining, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -6 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -6 |
| Insert Mounting Style Code | Lever Lock / Lock Pin |
| Ilclination Angle (Degree) | -6 |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 95 |
| Shank Height | 20.00 |
| Insert Size | CN-1204 |
| ISO Turning | Ext. Neg. 95° Approach - Facing |
