RDHX0702M0T PR1230
SKU
TKC05105
Product Overview
RDHX
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 03.50 |
| [IC] Inscribed Circle | 07.00 |
| [S] Insert Thickness | 2.39 |
| [AN] Clearance Angle Major | 15° |
| [D1] Hole Diameter | 2.80 |

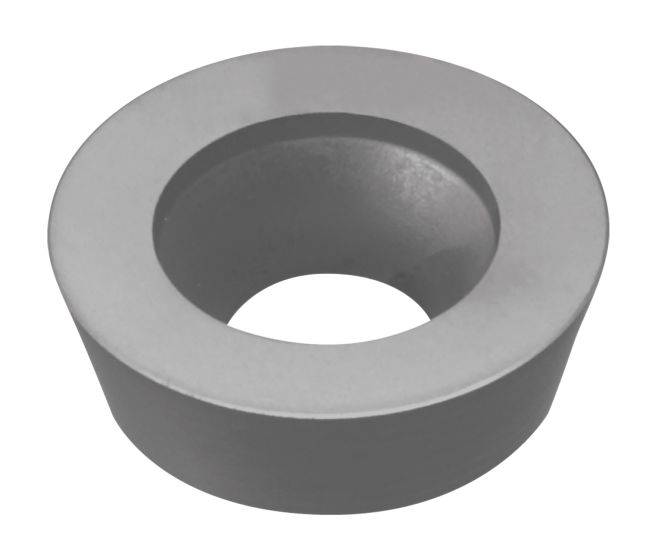

Milling Insert Carbide
| Weight | 0.001000 |
|---|---|
| Application | Milling |
| Coating | PVD |
| Primary Workpiece Material | Steel |
| Grade Manufacturers Designation | PR1230 |
| Tool Material | Regular Grain Carbide |
| Tool Type | Indexable Inserts |
| Coolant supply property | No |
| Application Category | Profiling, Pocketing, Contouring |
| Cutting Range | Roughing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | RDHX |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT |
| Cutting Edge Style | Double Chamfer |
| Insert Size | RD-0702 |
| Chip Breaker Manufacturers Designation | MOT |
