| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 3.00 |
| [DCON] Connection Diameter | 14.00 |
| [LH] Head Length | 22.00 |
| [HDD] Head Diameter | 20_00 |
| [LF] Functional Length | 100.00 |
| [LU] Usable Length | 18.00 |
| [H] Shank Height | 13.00 |

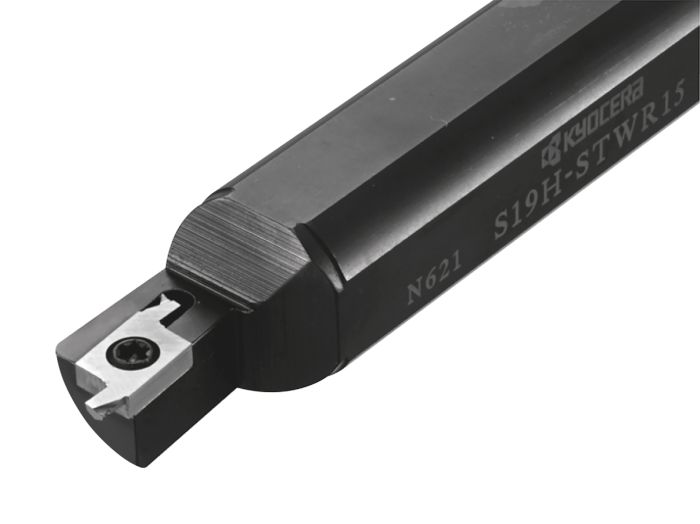

Twin Bar Holder
| Weight | 0.117000 |
|---|---|
| Application | Swiss Turning |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Holders |
| Application Category | Micro Face Grooving |
| Max Depth of Cut | 3.00 |
| Coolant supply property | No |
| Grooving | Parting off |
| Tool Style | S…STW |
| Head Diameter | 20_00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Usable Length | 18.00 |
| Shank Height | 13.00 |
