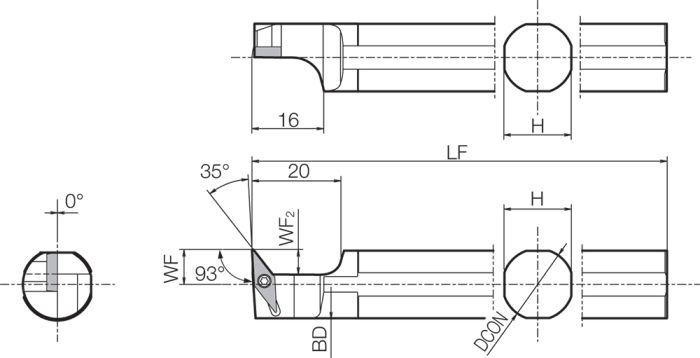

| Specifications | |
|---|---|
| [RE] Corner Radius | 0.4 |
| [DCON] Connection Diameter | 15.875 |
| [WF] Cutting Edge Distance | 8.00 |
| [WF2] Cutting Edge Distance Secondary | 5.50 |
| [BD] [BD] Body Diameter | 15_40 |
| [LF] Functional Length | 85.00 |
| [H] Shank Height | 15.00 |
External Sleeve Holder
| Weight | 0.115000 |
|---|---|
| Application | Swiss Turning |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Holders |
| Application Category | Facing, External Turning, Small parts machining |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | 0 |
| Grooving | Parting off |
| Tool Style | S…SVUC08 |
| Cutting Edge Distance Secondary | 5.50 |
| [BD] Body Diameter | 15_40 |
| Rake Angle Radial (Degree) | 0 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 93 |
| Shank Height | 15.00 |
