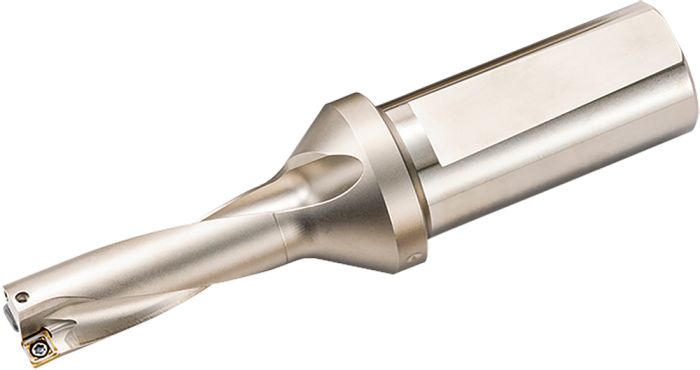

S25-DRV165M-3-05
SKU
THD11470
Product Overview
DRV
DIN6535 HE
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DC] Cutting Diameter | 16.50 |
| [DCON] Connection Diameter | 25.00 |
| [DCSFMS] Contact Surface Diameter Machine Side | 32.00 |
| [LFS] Functional Length | 73.00 |
| [OAL] Overall Length | 127.00 |
| [DC] Cutting Diameter | 16.50 |
| [DCX] Cutting Diameter Maximum | 16.50 |
| [LU] Usable Length | 49.50 |
Magic Drill Indexable Holder
| Weight | 0.311000 |
|---|---|
| Application | Drilling |
| Tool Type | Indexable Holders |
| Drilling | Drilling, Oblique Fat Drilling |
| Cutting Diameter Maximum | 16.50 |
| Tool Style | DRV |
| Type of Operation | Indexable Insert Drills |
| Coolant supply property | No |
| Grooving | Parting off |
| Cutting Item Count | 2 |
| Brand | Kyocera |
| Usable Length | 49.50 |
