S25-DRZ185555-06
SKU
THD00025
Product Overview
DRZ
DIN6535 HE
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DC] Cutting Diameter | 18.50 |
| [DCON] Connection Diameter | 25.00 |
| [DCSFMS] Contact Surface Diameter Machine Side | 32.00 |
| [LFS] Functional Length | 82.00 |
| [OAL] Overall Length | 136.00 |
| [DC] Cutting Diameter | 18.50 |
| [DCX] Cutting Diameter Maximum | 18.50 |
| [LU] Usable Length | 55.50 |

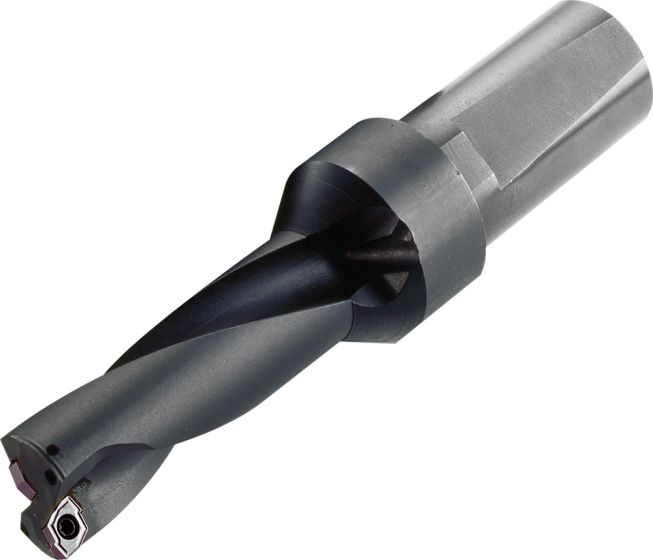

Magic Drill Indexable Holder
| Weight | 0.402000 |
|---|---|
| Application | Drilling |
| Tool Type | Indexable Holders |
| Drilling | Drilling, Oblique Fat Drilling |
| Cutting Diameter Maximum | 18.50 |
| Tool Style | DRZ |
| Coolant supply property | No |
| Grooving | Parting off |
| Cutting Item Count | 2 |
| Brand | Kyocera |
| Usable Length | 55.50 |
