S40-DRZ52104-15
SKU
THD62412
Product Overview
DRZ
DIN6535 HE
Face Miling
Price Hidden
In stock
Login to see stock availability.

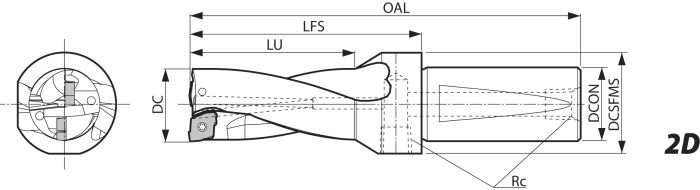

| Specifications | |
|---|---|
| [DC] Cutting Diameter | 52.00 |
| [DCON] Connection Diameter | 40.00 |
| [DCSFMS] Contact Surface Diameter Machine Side | 60.00 |
| [LFS] Functional Length | 136.00 |
| [OAL] Overall Length | 205.00 |
| [DC] Cutting Diameter | 52.00 |
| [DCX] Cutting Diameter Maximum | 52.00 |
| [LU] Usable Length | 104.00 |
Magic Drill Indexable Holder
| Weight | 2.142000 |
|---|---|
| Application | Drilling |
| Tool Type | Indexable Holders |
| Drilling | Drilling, Oblique Fat Drilling |
| Cutting Diameter Maximum | 52.00 |
| Tool Style | DRZ |
| Type of Operation | Indexable Insert Drills |
| Coolant supply property | No |
| Grooving | Parting off |
| Cutting Item Count | 2 |
| Brand | Kyocera |
| Usable Length | 104.00 |
