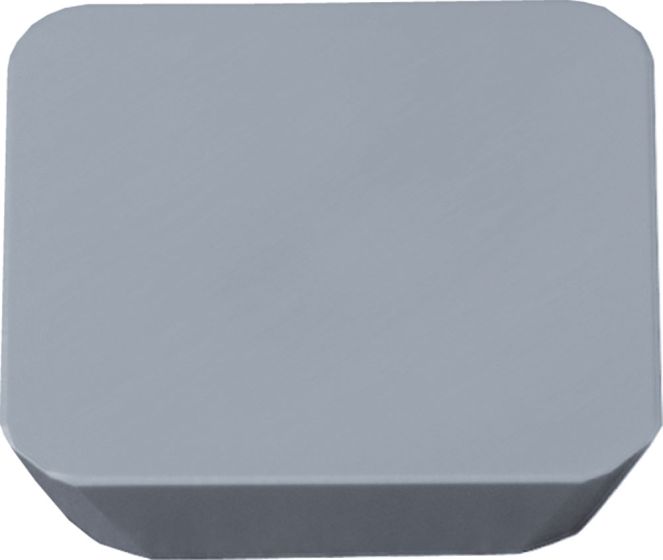

SDKN1203AUTN TN100M
SKU
TSP00510
Product Overview
SDKN
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 3.18 |
| [AS] Clearance Angle Wiper | 23° |
| [BCH] Corner Chamfer Length | 0.50 |
| [BS] Wiper Edge | 1.20 |
| [AN] Clearance Angle Major | 15° |
Milling Insert Cermet
| Weight | 0.003000 |
|---|---|
| Application | Milling |
| Coating | UNCOATED |
| Primary Workpiece Material | Steel |
| Grade Manufacturers Designation | TN100M |
| Tool Material | Cermet |
| Tool Type | Indexable Inserts |
| Corner Chamfer Length | 0.50 |
| Wiper Edge | 1.20 |
| Clearance Angle Wiper (Degree) | 23° |
| Coolant supply property | No |
| Application Category | Facing, Chamfering, Shouldering |
| Cutting Range | Finishing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | SDKN |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Cutting Edge Style | Chamfered Edge |
| Insert Size | sd-1203 |
| Chip Breaker Manufacturers Designation | AUTN |
