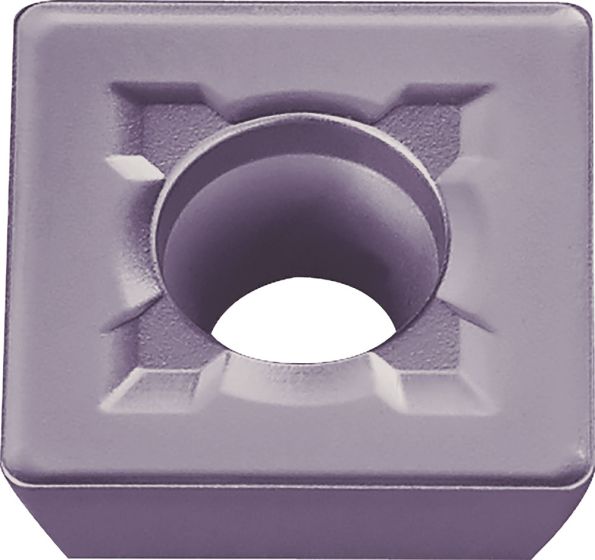

SDMT060304E-K PR1835
SKU
TLU00066
Product Overview
SDMT
Heat Resistant Materials
Stainless Steel
Steel
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 06.35 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 15° |
| [D1] Hole Diameter | 2.80 |
Milling Insert Carbide Coated
| Weight | 0.001000 |
|---|---|
| Application | Milling |
| Coating | PVD |
| Primary Workpiece Material | Steel, Stainless Steel, Heat Resistant Materials |
| Grade Manufacturers Designation | PR1835 |
| Tool Type | Indexable Inserts |
| Coolant supply property | No |
| Application Category | Back Side Milling, T-Slotting |
| Cutting Range | Roughing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | SDMT |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO EX |
| Cutting Edge Style | Honed Edge |
| Insert Size | SD-0603 |
| Chip Breaker Manufacturers Designation | E-K |
Currently Holders Selection Are Not Available Please Visit Back Later.
