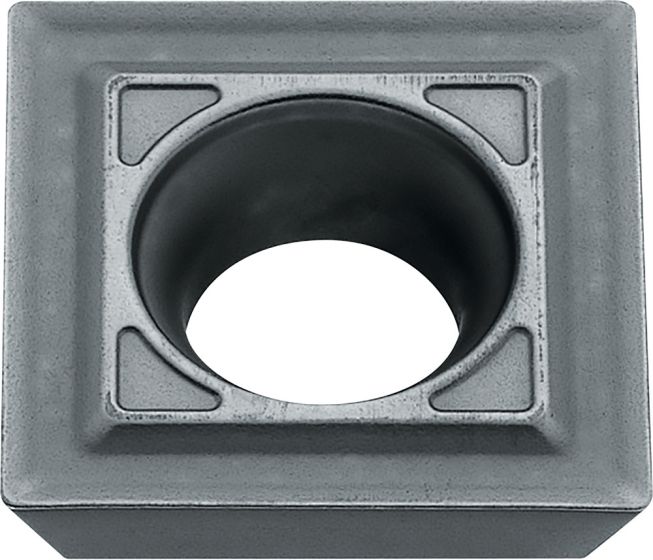

SDMT09T204C TN100M
SKU
TSP00543
Product Overview
SDMT
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 2.78 |
| [AN] Clearance Angle Major | 15° |
| [D1] Hole Diameter | 3.40 |
Milling Insert Cermet
| Weight | 0.002000 |
|---|---|
| Application | Milling |
| Coating | UNCOATED |
| Primary Workpiece Material | Steel |
| Grade Manufacturers Designation | TN100M |
| Tool Material | Cermet |
| Tool Type | Indexable Inserts |
| Coolant supply property | No |
| Application Category | Chamfering, Back Chamfering, Countersinking, V-Shape Slotting |
| Cutting Range | Finishing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | SDMT |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | TiCN/NbC |
| Cutting Edge Style | Low Cutting Force |
| Insert Size | SD-09T2 |
| Chip Breaker Manufacturers Designation | C |
