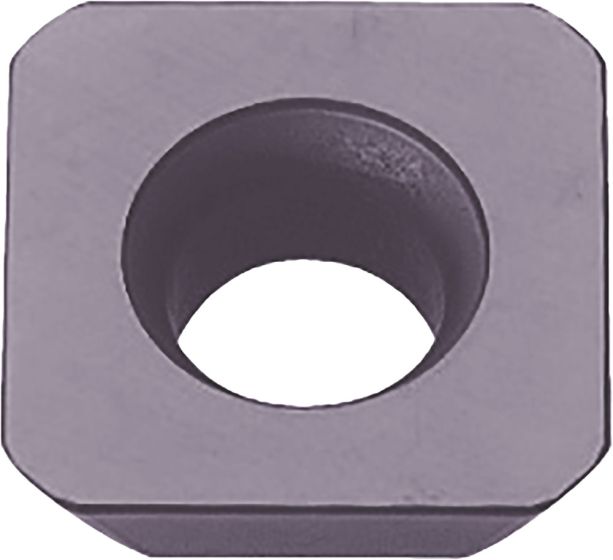

SEKW1204AFTN PR1210
SKU
TKA05239
Product Overview
SEKW
Heat Resistant Materials
Nodular Cast Iron
Cast Iron
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AS] Clearance Angle Wiper | 20° |
| [BCH] Corner Chamfer Length | R=1.00 |
| [BS] Wiper Edge | 1.70 |
| [AN] Clearance Angle Major | 15° |
| [D1] Hole Diameter | 5.50 |
Milling Insert Carbide
| Weight | 0.007000 |
|---|---|
| Application | Milling |
| Coating | PVD |
| Primary Workpiece Material | Cast Iron, Nodular Cast Iron, Heat Resistant Materials |
| Grade Manufacturers Designation | PR1210 |
| Tool Material | Regular Grain Carbide |
| Tool Type | Indexable Inserts |
| Corner Chamfer Length | R=1.00 |
| Wiper Edge | 1.70 |
| Clearance Angle Wiper (Degree) | 20° |
| Coolant supply property | No |
| Application Category | Facing, Chamfering, Shouldering |
| Cutting Range | Roughing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | SEKW |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT |
| Cutting Edge Style | Chamfered Edge |
| Insert Size | SE-1204 |
| Chip Breaker Manufacturers Designation | AFTN |
