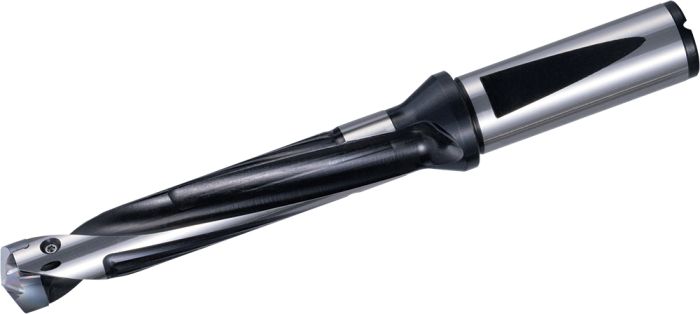

SF12-DRA095M-5
SKU
THD08596
Product Overview
DRA
DIN6535 HE
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DC] Cutting Diameter | 09.50 |
| [DCON] Connection Diameter | 12.00 |
| [DCSFMS] Contact Surface Diameter Machine Side | 16.00 |
| [LFS] Functional Length | 65.00 |
| [OAL] Overall Length | 110.00 |
| [DC] Cutting Diameter | 09.50 |
| [DCX] Cutting Diameter Maximum | 09.99 |
| [LS] [LS] Shank Length | 45.00 |
| [LU] Usable Length | 50.00 |
Magic Drill Indexable Holder
| Application | Drilling |
|---|---|
| Tool Type | Indexable Holders |
| Drilling | Drilling, Drilling and Deburring |
| Cutting Diameter Maximum | 09.99 |
| Tool Style | DRA |
| Type of Operation | Replaceable Tip Drills |
| Coolant supply property | Yes |
| Grooving | Parting off |
| Cutting Item Count | 1 |
| Brand | Kyocera |
| Usable Length | 50.00 |
Currently Holders Selection Are Not Available Please Visit Back Later.
