SFL-701B
SKU
THC05067
Product Overview
SF
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [L] Cutting edge length | 30.50 |
| [CDX] Max Depth of Cut | 04.80 |
| [DAXN_min] Minimum Face Groove Diameter | 70.00 |
| [DAXX_max] Maximum Face Groove Diameter | 100.00 |
| [H] Shank Height | 17.00 |
| [CW] Cutting Width | 2.00 |

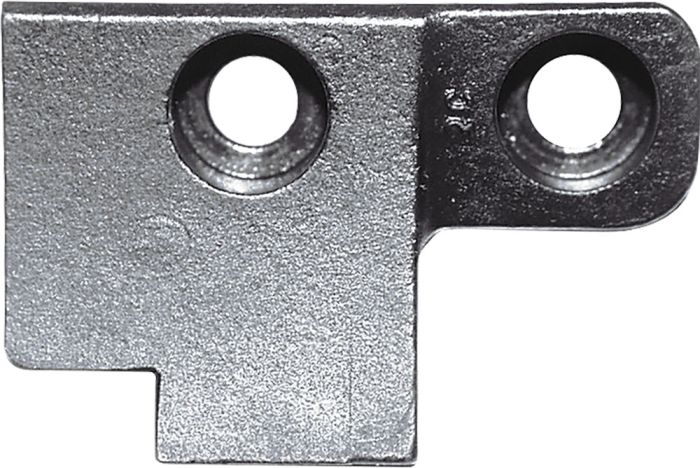

Face Grooving Blade
| Weight | 0.021000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 04.80 |
| Coolant supply property | No |
| Minimum Face Groove Diameter | 70.00 |
| Maximum Face Groove Diameter | 100.00 |
| Grooving | Externally Axial Grooving |
| Tool Style | SF |
| Insert Mounting Style Code | Top Clamp |
| Brand | Kyocera |
| Shank Height | 17.00 |
| Cutting Width | 2.00 |
