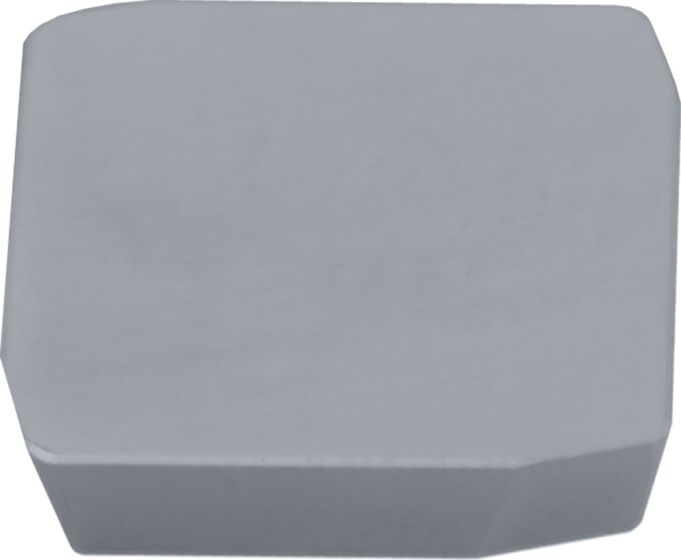

SPKN1504EDFR KW10
SKU
TWE00815
Product Overview
SPKN
Heat Resistant Materials
Non-Ferro
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 15.875 |
| [S] Insert Thickness | 4.76 |
| [AS] Clearance Angle Wiper | 15° |
| [BS] Wiper Edge | 2.20 |
| [AN] Clearance Angle Major | 11° |
Milling Insert Carbide
| Weight | 0.011000 |
|---|---|
| Application | Milling |
| Coating | UNCOATED |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Grade Manufacturers Designation | KW10 |
| Tool Type | Indexable Inserts |
| Wiper Edge | 2.20 |
| Clearance Angle Wiper (Degree) | 15° |
| Coolant supply property | No |
| Application Category | Facing, Chamfering, Shouldering |
| Cutting Range | Roughing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | SPKN |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | WC/Co |
| Cutting Edge Style | Sharp Edge |
| Insert Size | SP-1504 |
| Chip Breaker Manufacturers Designation | EDFR |
