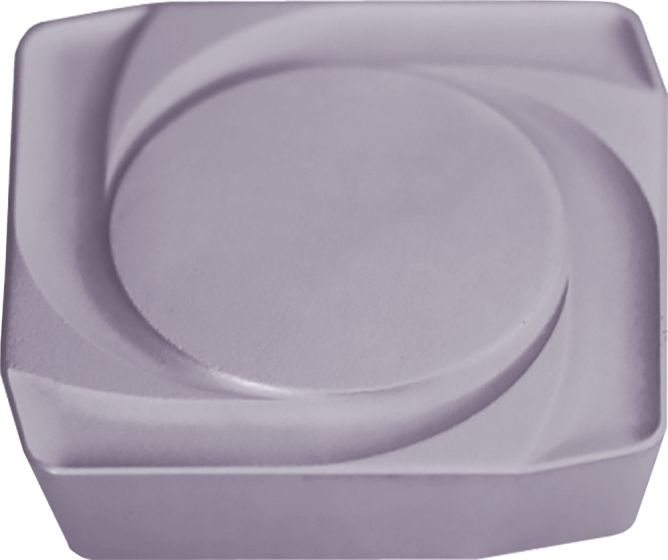

SPMR1203EDER-H PR1825
SKU
TLT00174
Product Overview
SPMR
Stainless Steel
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 3.18 |
| [AS] Clearance Angle Wiper | 15° |
| [BCH] Corner Chamfer Length | R=1.00 |
| [BS] Wiper Edge | 2.00 |
| [AN] Clearance Angle Major | 11° |
Milling Insert Carbide
| Weight | 0.008000 |
|---|---|
| Application | Milling |
| Coating | PVD |
| Primary Workpiece Material | Steel, Stainless Steel |
| Grade Manufacturers Designation | PR1825 |
| Tool Material | Regular Grain Carbide |
| Tool Type | Indexable Inserts |
| Corner Chamfer Length | R=1.00 |
| Wiper Edge | 2.00 |
| Clearance Angle Wiper (Degree) | 15° |
| Coolant supply property | No |
| Application Category | Facing, Chamfering |
| Cutting Range | Roughing |
| Number of Cutting Edges | 4 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | SPMR |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO EX |
| Cutting Edge Style | Honed Edge |
| Insert Size | SP-1203 |
| Chip Breaker Manufacturers Designation | EDER-H |
