| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 3.00 |
| [B] Shank Width | 16.00 |
| [HF] Cutting Edge Height | 16.00 |
| [WF] Cutting Edge Distance | 16.00 |
| [LF] Functional Length | 125.00 |
| [H] Shank Height | 16.00 |
| [CW] Cutting Width | 0.50 - 2.00 |

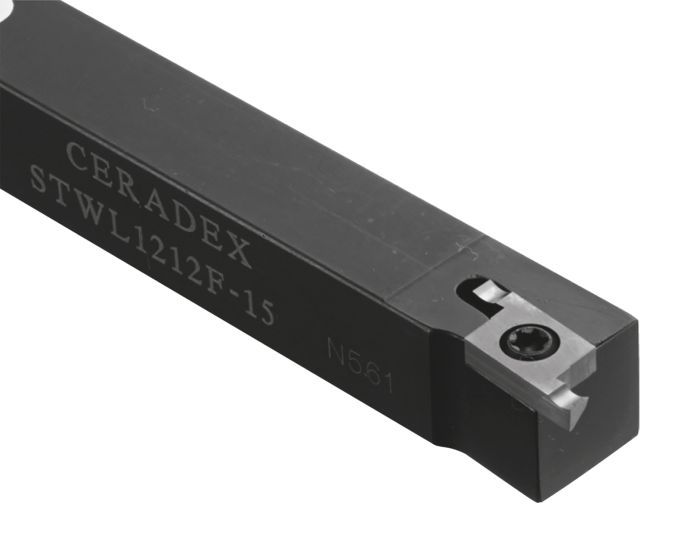

Twin Bar Holder
| Weight | 0.243000 |
|---|---|
| Application | Swiss Turning |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Holders |
| Application Category | Micro Boring, Micro Face Grooving, Micro_Grooving, Micro_Threading |
| Max Depth of Cut | 3.00 |
| Coolant supply property | No |
| Grooving | Parting off |
| Tool Style | STW |
| Cutting Width Minimum | 0.50 |
| Cutting Width Maximum | 2.00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Shank Height | 16.00 |
| Cutting Width | 0.50 - 2.00 |
