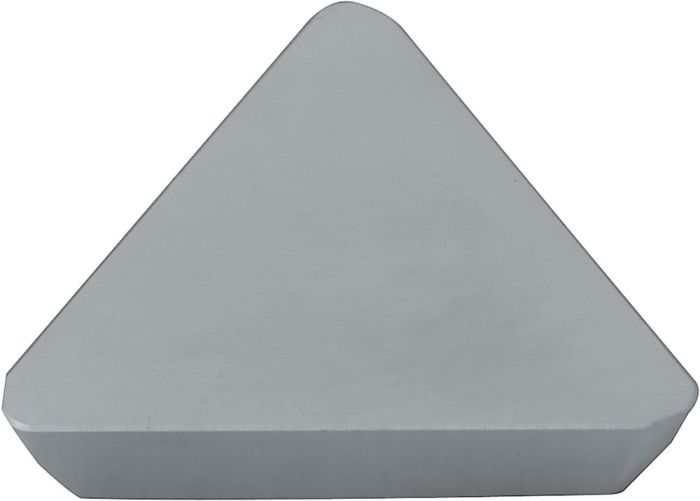

TEKN2204PTFR KW10
SKU
TWE00830
Product Overview
TEKN
Heat Resistant Materials
Non-Ferro
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AS] Clearance Angle Wiper | 22° |
| [BCH] Corner Chamfer Length | 0.70 |
| [BS] Wiper Edge | 1.40 |
| [AN] Clearance Angle Major | 20° |
Milling Insert Carbide
| Weight | 0.012000 |
|---|---|
| Application | Milling |
| Coating | UNCOATED |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Grade Manufacturers Designation | KW10 |
| Tool Material | Regular Grain Carbide |
| Tool Type | Indexable Inserts |
| Corner Chamfer Length | 0.70 |
| Wiper Edge | 1.40 |
| Clearance Angle Wiper (Degree) | 22° |
| Coolant supply property | No |
| Application Category | Facing, Shouldering, Slotting |
| Cutting Range | Roughing |
| Number of Cutting Edges | 3 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | TEKN |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | WC/Co |
| Cutting Edge Style | Sharp Edge |
| Insert Size | TE-2204 |
| Chip Breaker Manufacturers Designation | PTFR |
