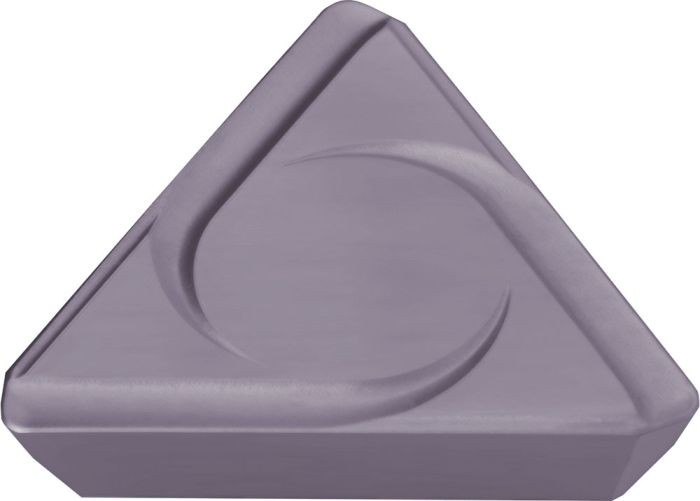

TEMR2204PTER-H PR1825
SKU
TLT00182
Product Overview
TEMR
Stainless Steel
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AS] Clearance Angle Wiper | 22° |
| [BCH] Corner Chamfer Length | R=1.00 |
| [BS] Wiper Edge | 1.40 |
| [AN] Clearance Angle Major | 20° |
Milling Insert Carbide
| Weight | 0.013000 |
|---|---|
| Application | Milling |
| Coating | PVD |
| Primary Workpiece Material | Steel, Stainless Steel |
| Grade Manufacturers Designation | PR1825 |
| Tool Material | Regular Grain Carbide |
| Tool Type | Indexable Inserts |
| Corner Chamfer Length | R=1.00 |
| Wiper Edge | 1.40 |
| Clearance Angle Wiper (Degree) | 22° |
| Coolant supply property | No |
| Application Category | Facing, Shouldering, Slotting |
| Cutting Range | Roughing |
| Number of Cutting Edges | 3 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | TEMR |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO EX |
| Cutting Edge Style | Honed Edge |
| Insert Size | TE-2204 |
| Chip Breaker Manufacturers Designation | PTER-H |
