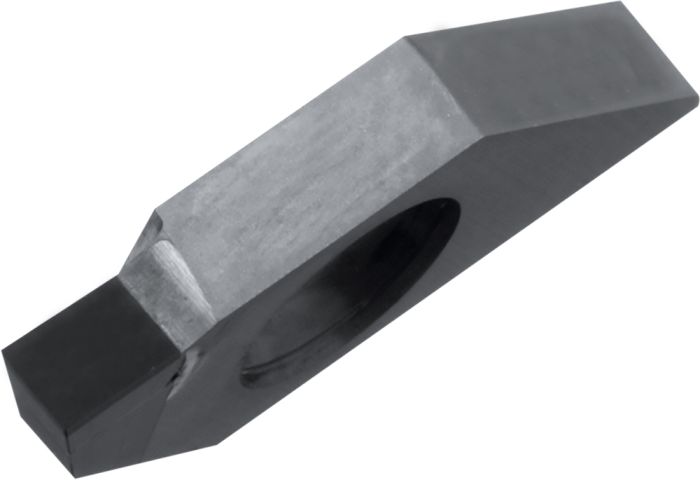

TKF12R150-NB KPD001
SKU
TBR16109
Product Overview
TKF
Heat Resistant Materials
Non-Ferro
Poly-chrystaline Diamond
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.10 |
| [S] Insert Thickness | 8.70 |
| [CDX] Max Depth of Cut | 3.50 |
| [LE] CBN/PCD Tip Length | 2.00 |
| [CW] Cutting Width | 1.50 |
| [W1] Insert Width | 3.00 |
| [D1] Hole Diameter | 5.00 |
Grooving Insert PCD
| Weight | 0.004000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KPD001 |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 3.50 |
| Tool Material | Poly-chrystaline Diamond |
| Application Category | Small parts machining, Traversing |
| CBN/PCD Tip Length | 2.00 |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | TKF |
| Cutting Width Tolerance | +0_03/-0_03 |
| Cutting Width Minimum | 1_50 |
| Cutting Width Maximum | 1_50 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Cutting Edge Style | 1-Edge |
| Usage Classification | Continuous |
| Cutting Range | Finishing |
| Cutting Width | 1.50 |
| Insert Size | TKF |
| Insert Width | 3.00 |
