TKFB12R28005P-GQ PR1725
SKU
TLM40154
Product Overview
TKFB
Steel
Micro Grain Carbide
C52
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.05 |
| [S] Insert Thickness | 8.70 |
| [CW] Cutting Width | 2.80 |
| [W1] Insert Width | 3.00 |
| [D1] Hole Diameter | 5.20 |

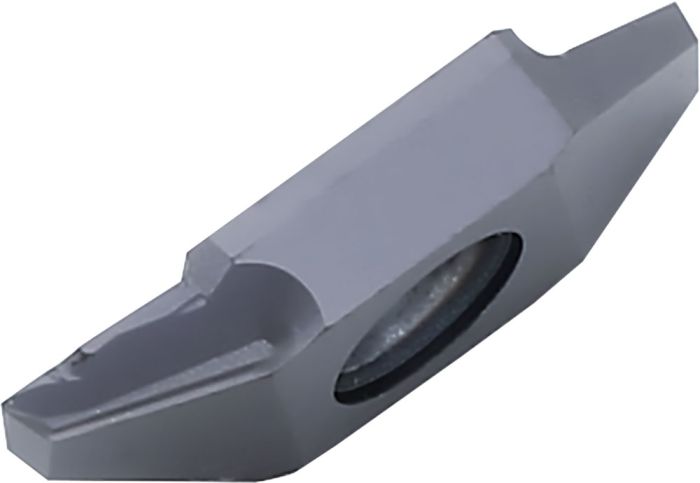

Grooving Insert Carbide
| Weight | 0.006000 |
|---|---|
| Application | Grooving |
| Coating | C52 |
| Grade Manufacturers Designation | PR1725 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Coolant supply property | No |
| Tool Material | Micro Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Insert Side Count | Positive |
| Tool Style | TKFB |
| Cutting Width Minimum | 2.80 |
| Cutting Width Maximum | 2.80 |
| Insert Mounting Style Code | Screw |
| Insert Lead Angle (Degree) | 74 |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO PLUS |
| Cutting Edge Style | Polished |
| Usage Classification | Continuous to Light Interruption |
| Cutting Width | 2.80 |
| Insert Size | TKFB-12R |
| Insert Width | 3.00 |
| Chip Breaker Manufacturers Designation | GQ |
