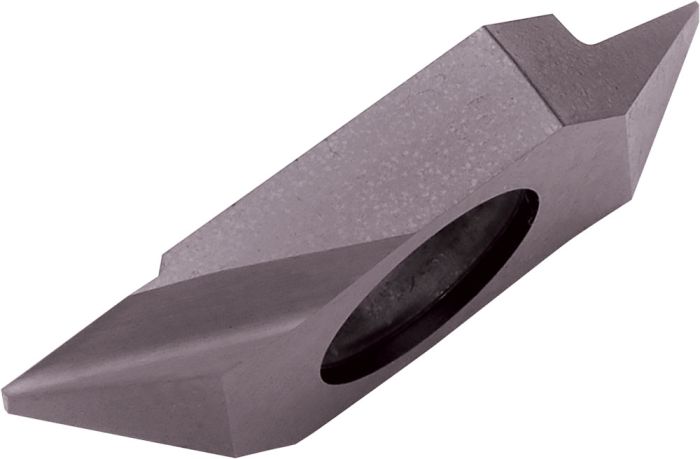

TKFB16L38010MR PR1535
SKU
TLC16526
Product Overview
TKFB
Stainless Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.10 |
| [S] Insert Thickness | 9.50 |
| [CW] Cutting Width | 3_80 |
| [W1] Insert Width | 4.00 |
| [D1] Hole Diameter | 5.20 |
Grooving Insert Carbide
| Weight | 0.007000 |
|---|---|
| Application | Grooving |
| Coating | PVD |
| Grade Manufacturers Designation | PR1535 |
| Primary Workpiece Material | Stainless Steel |
| Tool Type | Indexable Inserts |
| Coolant supply property | No |
| Tool Material | Micro Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Insert Side Count | Positive |
| Tool Style | TKFB |
| Cutting Width Minimum | 3.80 |
| Cutting Width Maximum | 3.80 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO |
| Cutting Edge Style | Minus Tolerance Corner Radius |
| Usage Classification | Continuous to Light Interruption |
| Cutting Width | 3_80 |
| Insert Size | TKFB-16L |
| Insert Width | 4.00 |
