TKL2 KW10
SKU
TWE15052
Product Overview
TKL
Non-Ferro
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [CW] Cutting Width | 2.20 |
| [W1] Insert Width | 2.20 |

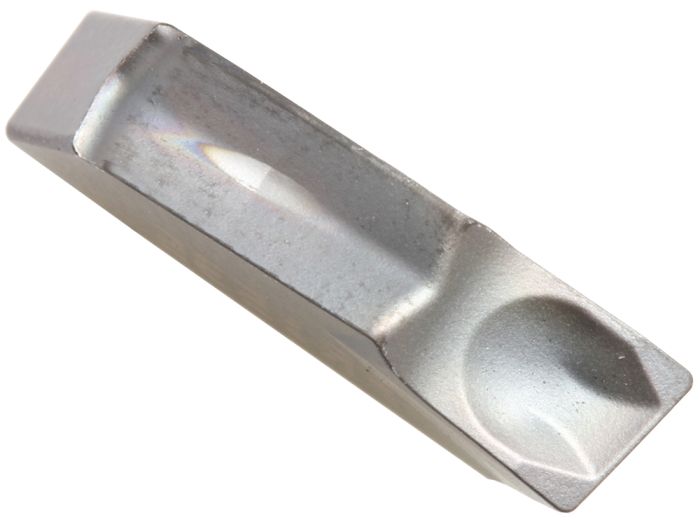

Grooving Insert Carbide
| Weight | 0.001000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KW10 |
| Primary Workpiece Material | Non-Ferro |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | TKL |
| Cutting Width Tolerance | -0_05/+0_05 |
| Cutting Width Minimum | 2.20 |
| Cutting Width Maximum | 2.20 |
| Insert Mounting Style Code | Self-Clamp |
| Insert Lead Angle (Degree) | 8 |
| Brand | Kyocera |
| Cutting Edge Style | 8 Degree Lead Angle |
| Usage Classification | Continuous to Light Interruption |
| Cutting Width | 2.20 |
| Insert Size | TKL-2 |
| Insert Width | 2.20 |
