TKN4 TN90
SKU
TSO15200
Product Overview
TKN
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.30 |
| [CW] Cutting Width | 4.10 |
| [W1] Insert Width | 4.10 |

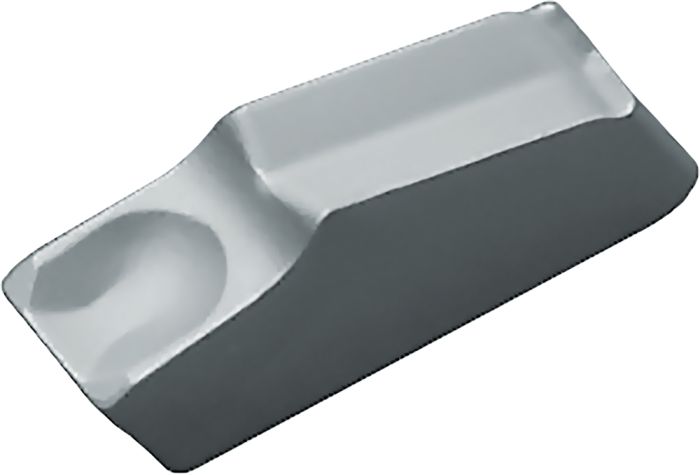

Grooving Insert Cermet
| Weight | 0.001000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN90 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | TKN |
| Cutting Width Tolerance | -0_05/+0_05 |
| Cutting Width Minimum | 4.10 |
| Cutting Width Maximum | 4.10 |
| Insert Mounting Style Code | Self-Clamp |
| Brand | Kyocera |
| Usage Classification | Continuous |
| Cutting Width | 4.10 |
| Insert Size | TKN-4 |
| Insert Width | 4.10 |
