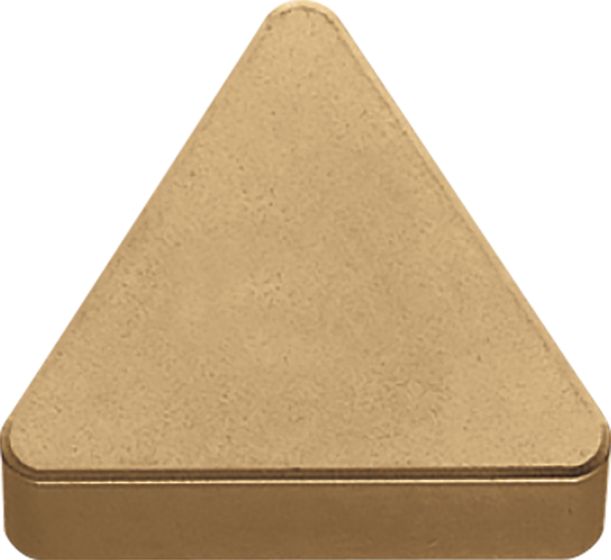

TNMN110308S02020 KBN900
SKU
TBP05000
Product Overview
TNMN
Hardened Material
Cubic Boron Nitride
AlTiCrN FN
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 6.35 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 0° |
Turning Insert CBN Coated
| Weight | 0.001000 |
|---|---|
| Application | ISO Turning |
| Coating | AlTiCrN FN |
| Grade Manufacturers Designation | KBN900M |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Cubic Boron Nitride |
| Application Category | Boring, Chamfering, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Cutting Range | Medium-Roughing |
| Number of Cutting Edges | 6 |
| Grooving | Parting off |
| Tool Style | TNMN |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Usage Classification | Continuous to Light Interruption |
| Cutting Range | Medium-Roughing |
| Edge Preparation | Chamfered + R-honed |
| Insert Size | TN-1103 |
