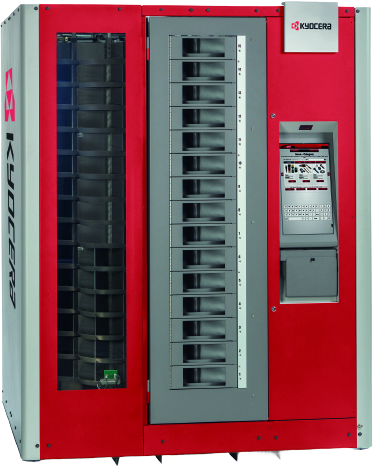

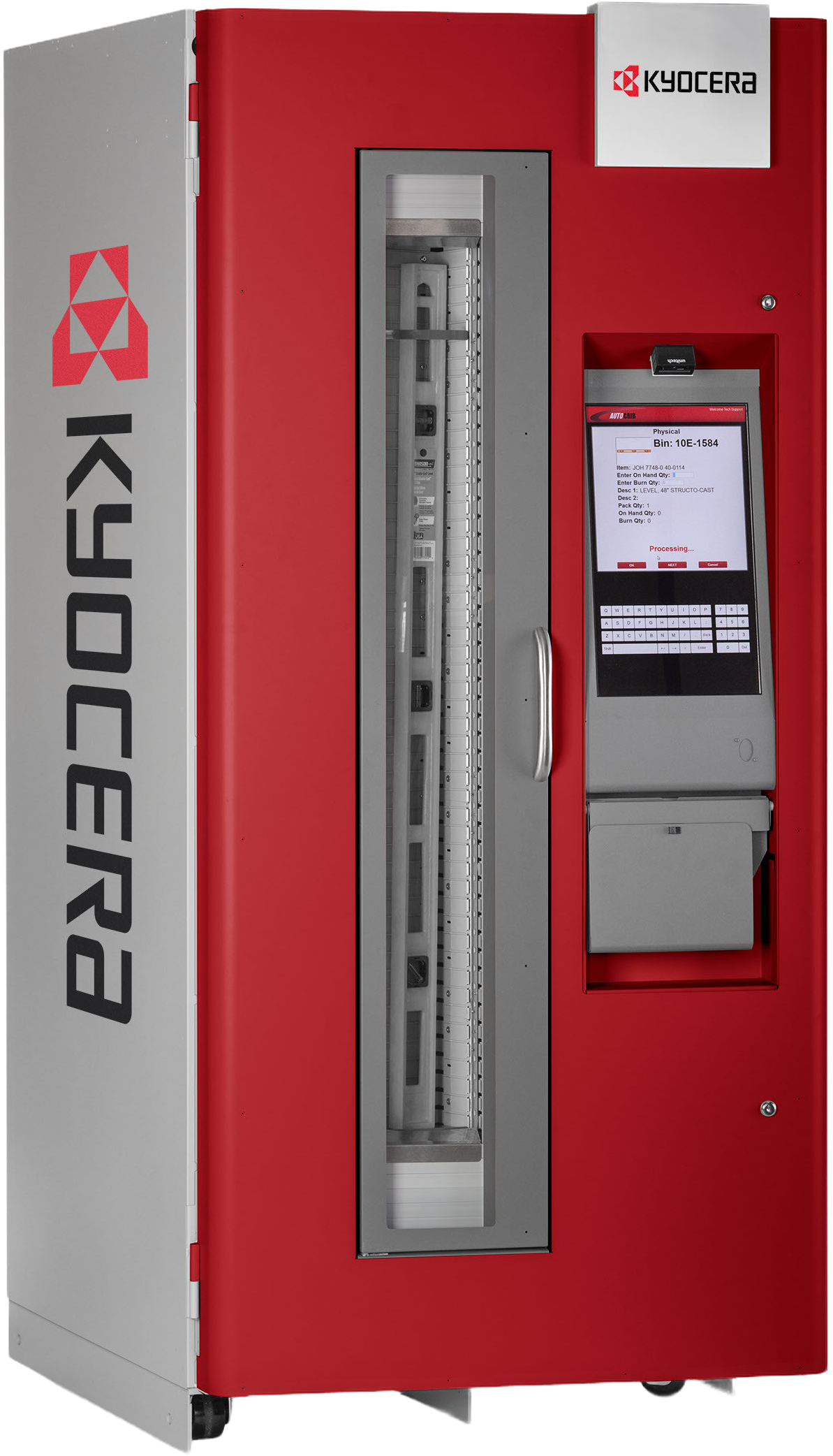

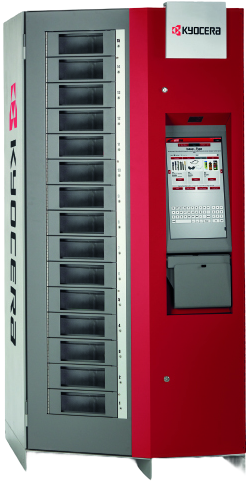

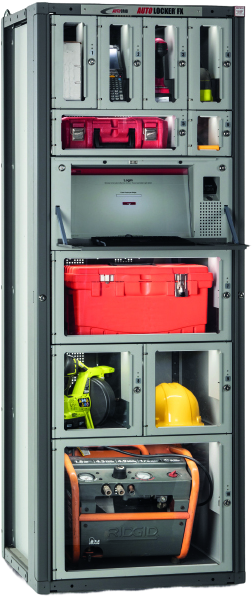

| VX 500 | VX 1000 | LX 2000 | TX 750 | AutoLocker® FX | |
| Maximum locations (Bins) | 628 | 1048 | 2574 | 987 | Completely modular |
| Weight capacity / kg | 272 | 453 | 1179 | 544 | 20-100 kg per module |
| Touch screen" | 19" | 19" | 19" | 19" | 19" |
| Dimensions / mm (W/H/D) | 86 / 193 / 99 | 86 / 193 / 99 | 157 / 213 / 57 | 87 / 202 / 105 | 71 / 191 / 65 |
| Caster Wheels | Optional | Optional | Optional | Optional | Optional |
| Power | 240V / 50HZ | 240V / 50HZ | 240V / 50HZ | 240V / 50HZ | 240V / 50HZ |
FX SCALE
• Weight based Tool Management Systems
Choose the AutoLocker FX Scale as a stand-alone or combine it with modules from the AutoLocker FX.
With the FX Scale you no longer need to count the amount of
items you need – the machine does it for you.
The system keeps your stock in check with integrated weights and
thereby eliminates the risk of inaccurate issues by the users.
| VX 500 | VX 1000 | LX 2000 | TX 750 | AutoLocker® FXw | |
|---|---|---|---|---|---|
| Indexable inserts | ••• | ••• | ••• | •• | • |
| Cutters | ••• | ••• | ••• | ••• | •• |
| Drills | ••• | ••• | ••• | ••• | • |
| Solid Carbide Tools | •• | •• | •• | ••• | •• |
| Tool Holders | • | • | •• | ••• | ••• |
| Measuring Equipment | •• | •• | •• | ••• | ••• |
| Accessories | •• | •• | •• | •• | ••• |
| Personal Protective Equipment | •• | •• | •• | •• | ••• |
| Overall flexibility and versatility | •• | •• | •• | ••• | •• |
