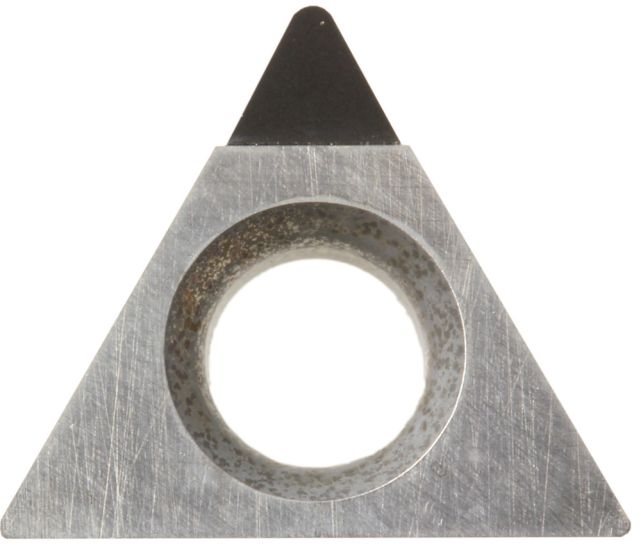

TPMH110301 KPD010
SKU
TBE00124
Product Overview
TPMH
Non-Ferro
Poly-chrystaline Diamond
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.10 |
| [IC] Inscribed Circle | 6.35 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 11° |
| [LE] CBN/PCD Tip Length | 3.90 |
| [D1] Hole Diameter | 3.30 |
Turning Insert PCD
| Weight | 0.002000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KPD010 |
| Primary Workpiece Material | Non-Ferro |
| Tool Type | Indexable Inserts |
| Tool Material | Poly-chrystaline Diamond |
| Application Category | Boring, Copying, External Turning, Internal Facing, Back Boring |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Cutting Range | Finishing-Medium |
| CBN/PCD Tip Length | 3.90 |
| Number of Cutting Edges | 1 |
| Grooving | Parting off |
| Tool Style | TPMH |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Usage Classification | Continuous |
| Cutting Range | Finishing-Medium |
| Insert Size | TP-1103 |
