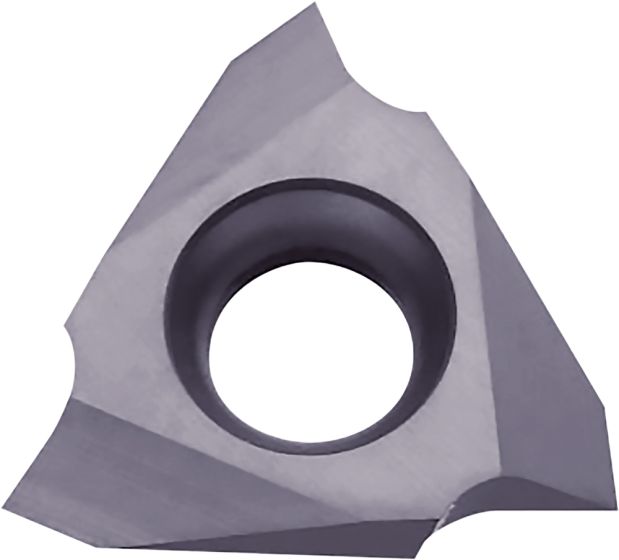

TT32R5502 PR930
SKU
TKT05732
Product Overview
TT32R
Stainless Steel
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.18 |
| [PDX] Profile Distance | - |
| [PNA] Thread Angle | 55 |
| [D1] Hole Diameter | 4.40 |
Threading Insert Carbide Coated
| Weight | 0.006000 |
|---|---|
| Application | Threading |
| Coating | PVD |
| Grade Manufacturers Designation | PR930 |
| Thread Type | External |
| Primary Workpiece Material | Steel, Stainless Steel |
| Profile Distance | - |
| Thread Angle | 55 |
| Thread Profile | 13655 |
| Thread Profile | 9071,9064,9063 |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Thread Pitch | 55 |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | TT32R |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Usage Classification | Continuous |
| Insert Size | TT32R |
| Thread Form Type | Parallel/Tapered pipe Withworth |
