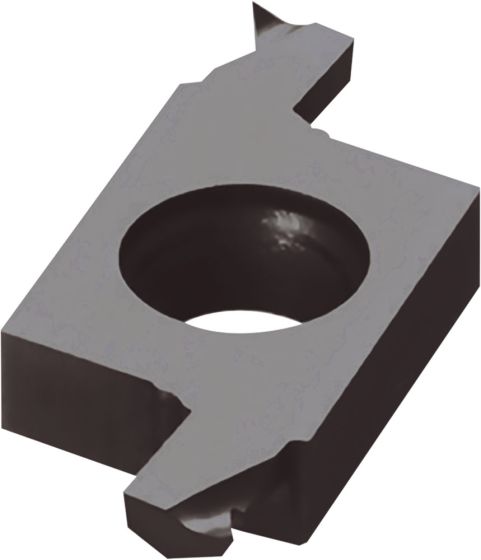

TWBR02503-005 PR1535
SKU
TLC58686
Stainless Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.05 |
| [WF] Cutting Edge Distance | 2.10 |
| [DMIN] Minimum Bore Diameter | 2.5 |
| [WF2] Cutting Edge Distance Secondary | 0.30 |
| [LF] Functional Length | 16.00 |
| [LU] Usable Length | 03.00 |
Micro Turning Bar Carbide
| Weight | 0.003000 |
|---|---|
| Application | Swiss Turning |
| Coating | PVD |
| Grade Manufacturers Designation | PR1535 |
| Primary Workpiece Material | Stainless Steel |
| Tool Type | Indexable Inserts |
| Application Category | Micro Boring |
| Coolant supply property | No |
| Tool Material | Micro Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | TWB |
| Cutting Edge Distance Secondary | 0.30 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 100 |
| Usable Length | 03.00 |
| Coating / Composition | MEGACOAT NANO |
