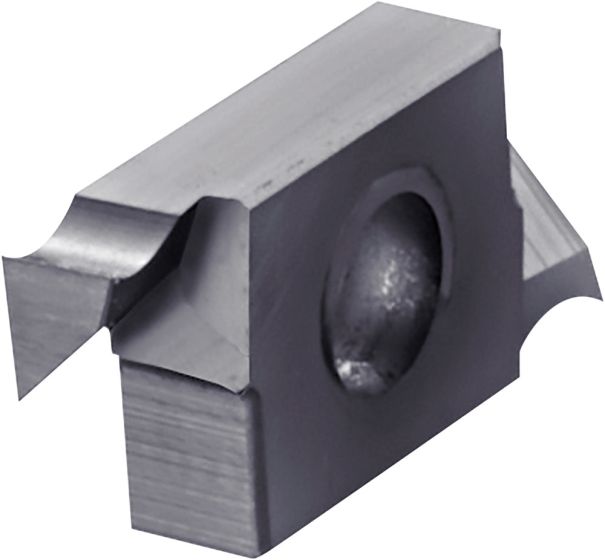

TWFGTR180 PR1535
SKU
TLC58711
Stainless Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 3.00 |
| [RE] Corner Radius | 0.05 |
| [DAXN_min] Minimum Face Groove Diameter | 6.00 |
| [DAXX_max] Maximum Face Groove Diameter | No Maximum |
| [GAN] Insert Rake Angle | 25 |
| [INSL] Insert length | 16.00 |
| [CW] Cutting Width | 1.80 |
| [W1] Insert Width | 6.40 |
Micro Face Grooving Bar Carbide
| Weight | 0.003000 |
|---|---|
| Application | Swiss Turning |
| Coating | PVD |
| Grade Manufacturers Designation | PR1535 |
| Primary Workpiece Material | Stainless Steel |
| Tool Type | Indexable Inserts |
| Application Category | Micro Face Grooving |
| Max Depth of Cut | 3.00 |
| Coolant supply property | No |
| Minimum Face Groove Diameter | 6.00 |
| Maximum Face Groove Diameter | No Maximum |
| Rake Angle Axial (Degree) | 0 |
| Tool Material | Micro Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | TWFGT |
| Cutting Width Minimum | 1.80 |
| Cutting Width Maximum | 1.80 |
| Rake Angle Radial (Degree) | 0 |
| Insert Rake Angle (Degree) | 25 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 95 |
| Coating / Composition | MEGACOAT NANO |
| Insert length | 16.00 |
| Cutting Width | 1.80 |
| Insert Width | 6.40 |
