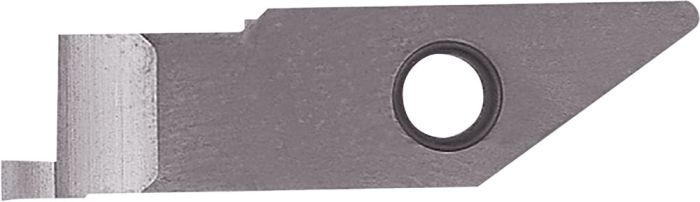

VNFGR0820-10 PR930
SKU
TKT09412
Stainless Steel
Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 2.00 |
| [RE] Corner Radius | 0.05 |
| [WF] Cutting Edge Distance | 7.30 |
| [DMIN] Minimum Bore Diameter | 8.00 |
| [DAXN_min] Minimum Face Groove Diameter | 8_00 |
| [DAXX_max] Maximum Face Groove Diameter | No Maximum |
| [GAN] Insert Rake Angle | 25 |
| [LF] Functional Length | 29.60 |
| [LU] Usable Length | 10.00 |
| [H] Shank Height | 3.90 |
| [CW] Cutting Width | 2.00 |
Micro Face Grooving Bar Carbide
| Weight | 0.011000 |
|---|---|
| Application | Swiss Turning |
| Coating | PVD |
| Grade Manufacturers Designation | PR930 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Application Category | Micro Face Grooving |
| Max Depth of Cut | 2.00 |
| Coolant supply property | No |
| Minimum Face Groove Diameter | 8_00 |
| Maximum Face Groove Diameter | No Maximum |
| Rake Angle Axial (Degree) | 0 |
| Tool Material | Micro Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | VNFG |
| Cutting Width Tolerance | +0.03/-0.03 |
| Cutting Width Minimum | 2.00 |
| Cutting Width Maximum | 2.00 |
| Rake Angle Radial (Degree) | 0 |
| Insert Rake Angle (Degree) | 25 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 90 |
| Usable Length | 10.00 |
| Coating / Composition | TiCN |
| Shank Height | 3.90 |
| Cutting Width | 2.00 |
