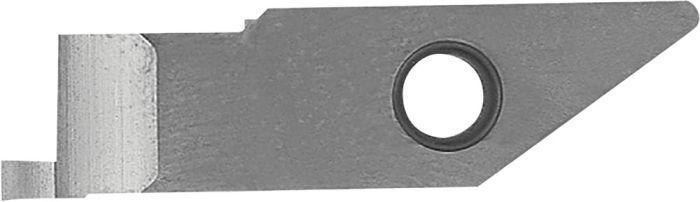

VNFGR0830-10 KW10
SKU
TWE07174
Heat Resistant Materials
Non-Ferro
Nodular Cast Iron
Cast Iron
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 3.00 |
| [RE] Corner Radius | 0.05 |
| [WF] Cutting Edge Distance | 7.30 |
| [DMIN] Minimum Bore Diameter | 8.00 |
| [DAXN_min] Minimum Face Groove Diameter | 8_00 |
| [DAXX_max] Maximum Face Groove Diameter | No Maximum |
| [GAN] Insert Rake Angle | 25 |
| [LF] Functional Length | 29.60 |
| [LU] Usable Length | 10.00 |
| [H] Shank Height | 3.90 |
| [CW] Cutting Width | 3.00 |
Micro Face Grooving Bar Carbide
| Weight | 0.016000 |
|---|---|
| Application | Swiss Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KW10 |
| Primary Workpiece Material | Cast Iron, Nodular Cast Iron, Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Application Category | Micro Face Grooving |
| Max Depth of Cut | 3.00 |
| Coolant supply property | No |
| Minimum Face Groove Diameter | 8_00 |
| Maximum Face Groove Diameter | No Maximum |
| Rake Angle Axial (Degree) | 0 |
| Tool Material | Regular Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | VNFG |
| Cutting Width Tolerance | +0.03/-0.03 |
| Cutting Width Minimum | 3.00 |
| Cutting Width Maximum | 3.00 |
| Rake Angle Radial (Degree) | 0 |
| Insert Rake Angle (Degree) | 25 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 90 |
| Usable Length | 10.00 |
| Coating / Composition | WC/Co |
| Shank Height | 3.90 |
| Cutting Width | 3.00 |
