VNFGR0830-10NB KPD001
SKU
TBR07854
Product Overview
VNFGR
Heat Resistant Materials
Non-Ferro
Poly-chrystaline Diamond
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.

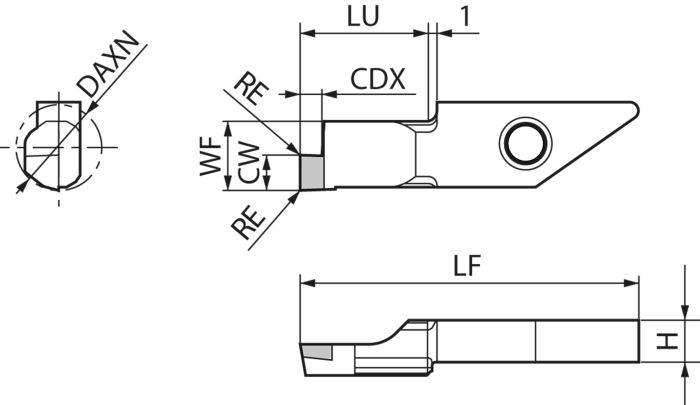

| Specifications | |
|---|---|
| [RE] Corner Radius | 0.05 |
| [CDX] Max Depth of Cut | 3.00 |
| [WF] Cutting Edge Distance | 7.30 |
| [DMIN] Minimum Bore Diameter | 8.00 |
| [WF2] Cutting Edge Distance Secondary | 0.30 |
| [LF] Functional Length | 29.60 |
| [LU] Usable Length | 10.00 |
| [H] Shank Height | 3.90 |
Turning Insert PCD
| Weight | 0.010000 |
|---|---|
| Application | Swiss Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KPD001 |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Application Category | Micro Internal Grooving |
| Max Depth of Cut | 3.00 |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | 0 |
| Tool Material | Poly-chrystaline Diamond |
| Grooving | Parting off |
| Number of Cutting Edges | 1 |
| Tool Style | VNFGR |
| Cutting Edge Distance Secondary | 0.30 |
| Rake Angle Radial (Degree) | 0 |
| Insert Rake Angle (Degree) | 0 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 92 |
| Usable Length | 10.00 |
| Cutting Range | Finishing-Medium |
| Shank Height | 3.90 |
| Insert Size | VNFGR-0830 |
| Chip Breaker Manufacturers Designation | NB |
