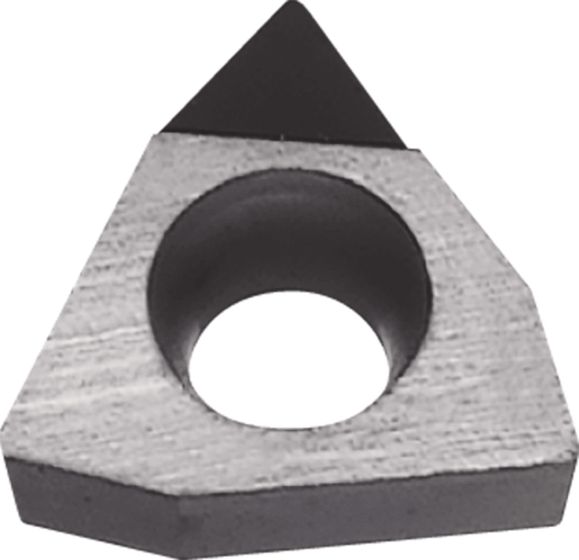

WBMT080202L KPD001
SKU
TBR07124
Product Overview
WBMT
Heat Resistant Materials
Non-Ferro
Poly-chrystaline Diamond
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 4.76 |
| [S] Insert Thickness | 2.38 |
| [AN] Clearance Angle Major | 5° |
| [LE] CBN/PCD Tip Length | 2.40 |
| [D1] Hole Diameter | 2.30 |
Turning Insert PCD
| Weight | 0.001000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KPD001 |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Tool Material | Poly-chrystaline Diamond |
| Application Category | Boring, Internal Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Cutting Range | Finishing-Medium |
| CBN/PCD Tip Length | 2.40 |
| Number of Cutting Edges | 1 |
| Grooving | Parting off |
| Tool Style | WBMT |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Usage Classification | Continuous |
| Cutting Range | Finishing-Medium |
| Insert Size | WB-0802 |
| Chip Breaker Manufacturers Designation | L |
