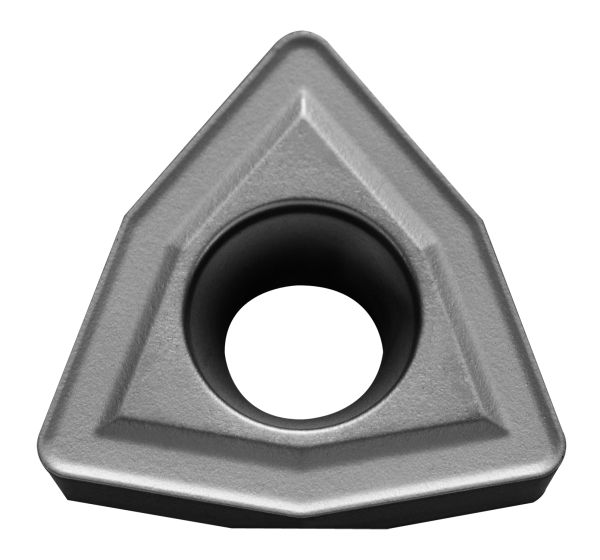

WCMT06T308 PR1535
SKU
TLC09302
Product Overview
WCMT
Nodular Cast Iron
Cast Iron
Stainless Steel
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.30 |
| [IC] Inscribed Circle | 9.533 |
| [S] Insert Thickness | 3.97 |
| [RE] Corner Radius | 0.8 |
| [AN] Clearance Angle Major | 7° |
| [INSL] Insert length | 9.525 |
| [D1] Hole Diameter | 3.70 |
Magic Drill Insert Carbide
| Weight | 0.004000 |
|---|---|
| Application | Drilling |
| Coating | PVD |
| Grade Manufacturers Designation | PR1535 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Nodular Cast Iron |
| Tool Type | Indexable Inserts |
| Insert Side Count | Positive |
| Tool Style | WCMT |
| Coolant supply property | No |
| Tool Material | Regular Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 3 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO |
| Insert length | 9.525 |
| Insert Size | WC-06T3 |
