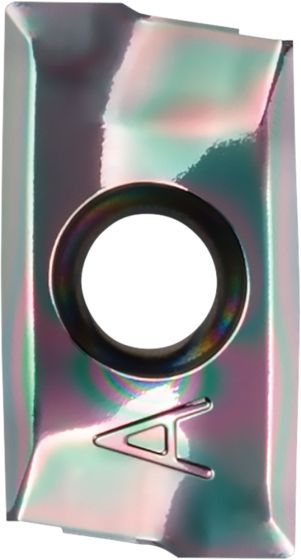

BDGT170404FR-JA PDL025
SKU
TLE00281
Product Overview
BDGT
Non-Ferro
Micro Grain Carbide
DLC Coating
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [S] Insert Thickness | 4.90 |
| [L] Cutting edge length | 17.00 |
| [AS] Clearance Angle Wiper | 13° |
| [AN] Clearance Angle Major | 18° |
| [W1] Insert Width | 9.60 |
| [D1] Hole Diameter | 4.40 |
Milling Insert Carbide Coated
| Weight | 0.007000 |
|---|---|
| Application | Milling |
| Coating | DLC Coating |
| Primary Workpiece Material | Non-Ferro |
| Grade Manufacturers Designation | PDL025 |
| Tool Material | Micro Grain Carbide |
| Tool Type | Indexable Inserts |
| Clearance Angle Wiper (Degree) | 13° |
| Coolant supply property | No |
| Application Category | Facing, Helical Milling, Shouldering, Slotting |
| Cutting Range | Roughing |
| Number of Cutting Edges | 2 |
| Insert Side Count | Positive |
| Grooving | Parting off |
| Tool Style | BDGT |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | C |
| Cutting Edge Style | Sharp Edge |
| Insert Size | BD-1704 |
| Insert Width | 9.60 |
| Chip Breaker Manufacturers Designation | FR-JA |
