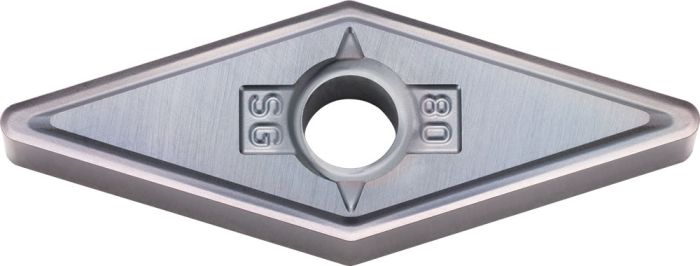

VNMG160408SG PR005S
SKU
TLH58654
Product Overview
VNMG
Heat Resistant Materials
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 3.81 |
Turning Insert Negative Carbide Coated
| Weight | 0.011000 |
|---|---|
| Application | ISO Turning |
| Coating | PVD |
| Chipbreaker Size | Roughing |
| Grade Manufacturers Designation | PR005S |
| Primary Workpiece Material | Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Undercutting, Copying, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 4 |
| Grooving | Parting off |
| Tool Style | VNMG |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT HARD |
| Cutting Edge Style | Heat-Resistant Alloy |
| Usage Classification | Continuous |
| Insert Size | VN-1604 |
| Chip Breaker Manufacturers Designation | SG |
