| Specifications | |
|---|---|
| [B] Shank Width | 25.00 |
| [HF] Cutting Edge Height | 20.00 |
| [LH] Head Length | 48.00 |
| [WF] Cutting Edge Distance | 12.50 |
| [LF] Functional Length | 150.00 |
| [H] Shank Height | 25.00 |

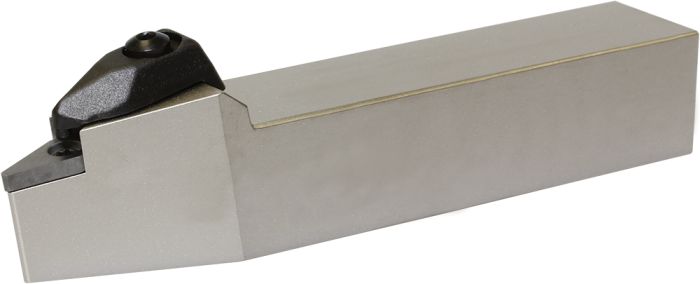

Turning Holder
| Weight | 0.661000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Application Category | Copying, External Turning |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -11 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | 0 |
| Insert Mounting Style Code | Double Clamp |
| Ilclination Angle (Degree) | -11 |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 72.5 |
| Shank Height | 25.00 |
| Insert Size | VN-1604 |
| ISO Turning | Ext. Neg. 72.5° Approach Turning |
