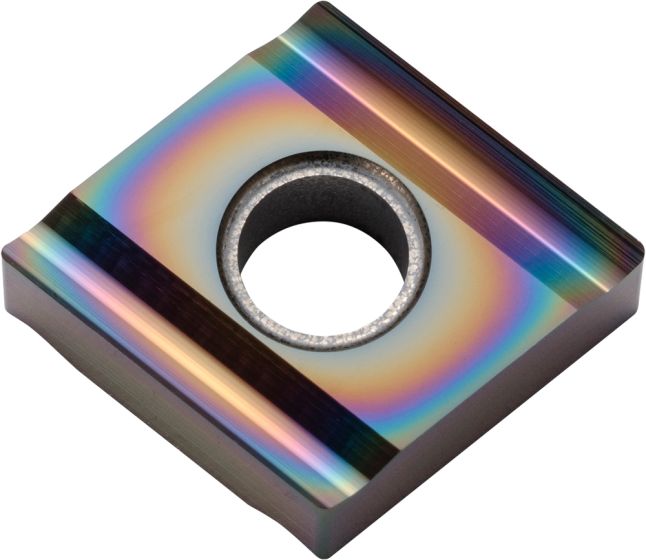

CNGG120408R-A3 PDL010
SKU
TLK04444
Product Overview
CNGG
Non-Ferro
Regular Grain Carbide
DLC Coating
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 5.16 |
Turning Insert Negative Carbide Coated
| Weight | 0.010000 |
|---|---|
| Application | ISO Turning |
| Coating | DLC Coating |
| Chipbreaker Size | Medium-Roughing |
| Grade Manufacturers Designation | PDL010 |
| Primary Workpiece Material | Non-Ferro |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Boring, External Turning, Internal Facing, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 4 |
| Grooving | Parting off |
| Tool Style | CNGG |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | C |
| Cutting Edge Style | Sharp Edge / Non-Ferrous Metals |
| Usage Classification | Continuous |
| Insert Size | CN-1204 |
| Chip Breaker Manufacturers Designation | R-A3 |
