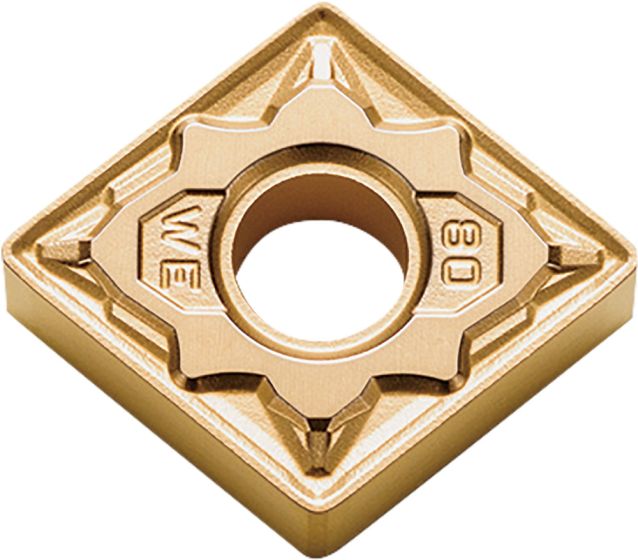

CNMG120412WE CA515
SKU
TAB01162
Product Overview
CNMG
Steel
Regular Grain Carbide
CVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 1.20 |
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 5.16 |
Turning Insert Negative Carbide Coated
| Weight | 0.010000 |
|---|---|
| Application | ISO Turning |
| Coating | CVD |
| Chipbreaker Size | Finishing |
| Grade Manufacturers Designation | CA515 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Boring, External Turning, Internal Facing, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 4 |
| Grooving | Parting off |
| Tool Style | CNMG |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN/Al2O3/TiN |
| Cutting Edge Style | Wiper Edge |
| Usage Classification | Continuous |
| Insert Size | CN-1204 |
| Chip Breaker Manufacturers Designation | WE |
