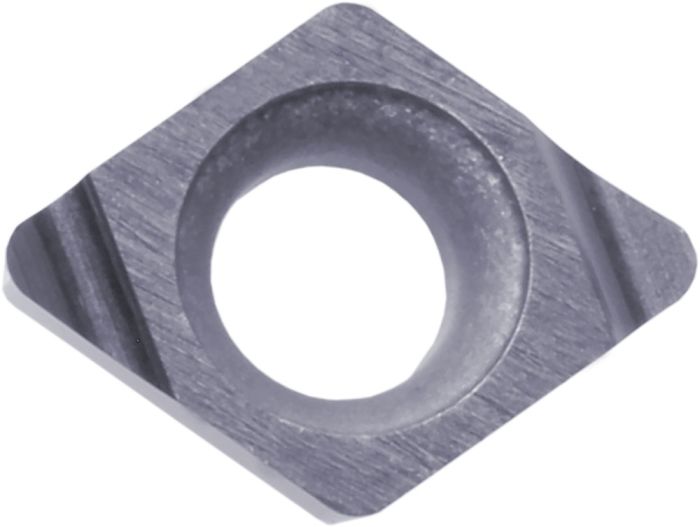

JCGT030101R-F PR930
SKU
TKT00733
Product Overview
JCGT
Stainless Steel
Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.10 |
| [IC] Inscribed Circle | 3.50 |
| [S] Insert Thickness | 1.40 |
| [AN] Clearance Angle Major | 7° |
| [D1] Hole Diameter | 1.90 |
Turning Insert Positive Carbide Coated
| Weight | 0.002000 |
|---|---|
| Application | ISO Turning |
| Coating | PVD |
| Chipbreaker Size | Finishing |
| Grade Manufacturers Designation | PR930 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Micro Grain Carbide |
| Application Category | Boring, Internal Facing, Back Boring |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | JCGT |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Cutting Edge Style | Sharp Edge |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | JC-0301 |
| Chip Breaker Manufacturers Designation | R-F |
