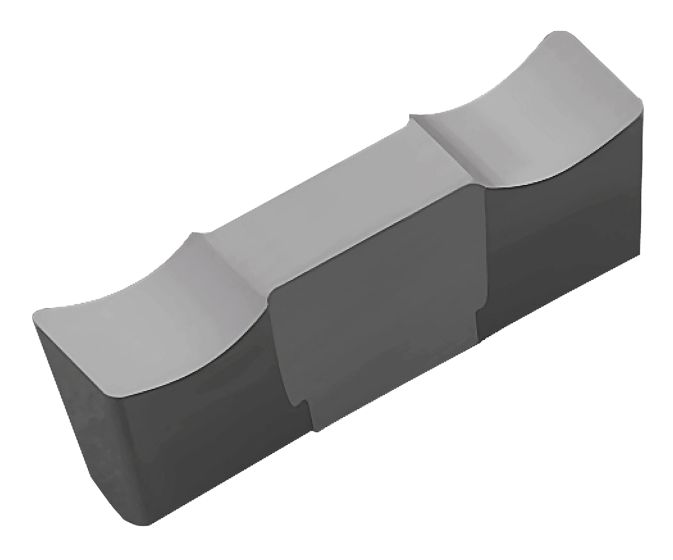

GH6520-05 TC40
SKU
TSM02914
Product Overview
GH
Cast Iron
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.50 |
| [S] Insert Thickness | 7.50 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 6_50 |
Insert for External Deep Grooving, Internal Large Diameter Deep Grooving
| Weight | 0.003000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TC40 |
| Primary Workpiece Material | Steel, Cast Iron |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GH |
| Cutting Width Tolerance | -0_05/+0_05 |
| Cutting Width Minimum | 6.50 |
| Cutting Width Maximum | 6.50 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | TiC+TiN |
| Insert length | 20.00 |
| Cutting Width | 6_50 |
| Insert Size | GH-6520 |
