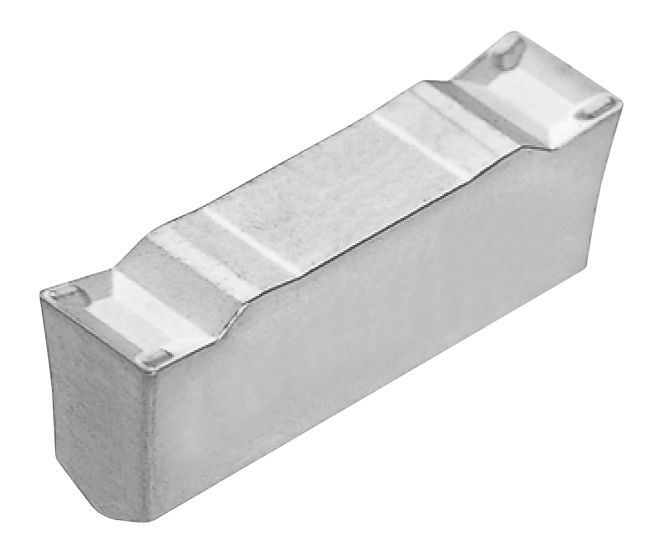

GHU60-20 TN60
SKU
TSJ00958
Product Overview
GHU
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.30 |
| [S] Insert Thickness | 7.50 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 6.00 |
Insert for External Deep Grooving
| Weight | 0.005000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN60 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GHU |
| Cutting Width Tolerance | -0_05/+0_05 |
| Cutting Width Minimum | 6.00 |
| Cutting Width Maximum | 6.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN+NbC |
| Usage Classification | Continuous |
| Insert length | 20.00 |
| Cutting Width | 6.00 |
| Insert Size | GHU6020 |
