MSTB6000AN500-5T
SKU
THC10792
Product Overview
MSTB
Sitting
Side Slotting
Slot Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 47.60 |
| [DC] Cutting Diameter | 152.40 |
| [DCB] Connection Bore Diameter | 38.10 |
| [DCFMS] Contact Surface Diameter Machine Side | 57.20 |
| [KDP] Keyway Depth | 42.30 |
| [KWW] Keyway With | 09.52 |
| [NOF] Flute count | 5 |

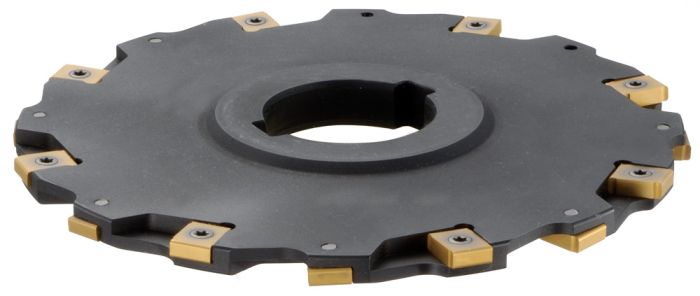

Slot Milling Cutter
| Weight | 1.721000 |
|---|---|
| Application | Milling |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 47.60 |
| Connection Code Machine | Disk Type |
| Coolant supply property | No |
| Connection Bore Diameter | 38.10 |
| Contact Surface Diameter Machine Side | 57.20 |
| Flute count | 5 |
| Cutting Item Count | 10 |
| Application Category | Slotting, Cut-Off |
| Grooving | Parting off |
| Tool Style | MSTB |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Families | Slott Mill |
| Insert Size | LNEU |
Currently Holders Selection Are Not Available Please Visit Back Later.
